Qstar-7X UHF Chip

Qstar-7X is an Internet of things (IOT) RFID chip that conforms to EPC global Gen 2 protocol. This RFID chip has excellent read sensitivity and write sensitivity. In addition to supporting single port antenna port, it can also support dual-differential antenna ports which can enable compact Omni-directional tags and improve item-level read reliability.


Advantage
  1. Read sensitivity up to -21dBm(Sensitivity on a dipole antenna)

  2. Write sensitivity up to -17dBm(Sensitivity on a dipole antenna)

  3. Storage temperature range: -55℃ ~ +125℃

  4. Operating temperature (Toper): -40℃ to +85℃

  5. EPC global Gen 2V2 and ISO 18000-6C

  6. EPC Bank: 528 bits (Maximum, Include 16 bit CRC and 16bit PC, details check Memory Map)

  7. TID Bank: 96 bits

  8. Reserved Bank: 64 bits

  9. User: 512 bits (Maximum, details check Memory Map)

  10. Block write(1 word or 2 word)

  11. Block erase(1 word or 2 word)

  12. Block Perma Lock function (Block size is 4 words)

  13. Support single port antenna port

  14. Support dual-differential antenna ports

  15. Flexible memory architecture between EPC & USER

  16. Automatic antenna tuning


Application Scenario

Item Level Tagging (Apparel tagging)

Logistics/supply chain management

Retailing tagging

Tobacco Identifying

Stuff/Vehicle Access Control

Air baggage tagging

Pallet/Case tracking

Anti-counterfeit

Power Company Asset Management

Medical Health

Library Management

Automobile Tire Management

Jewelry Management

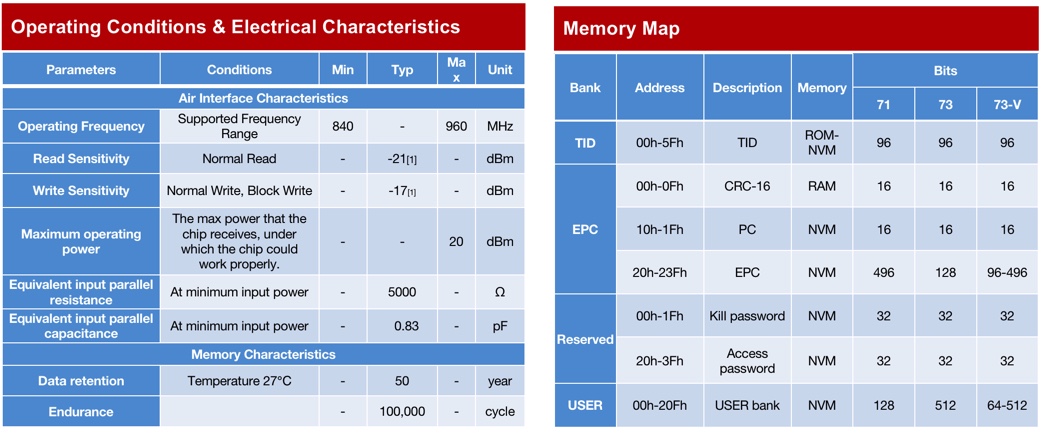

Technical Parameters

图像2021-1-29 下午2.09.jpg
