Make more changes and attempts to meet customers' needs, and provide solutions covering a variety of application scenarios, so that you can achieve the best results at the lowest cost.
composition:
High-sensitivity reader-single tag recognition distance is greater than 40cm
Multi-layer antenna array group-the magnetic field in the cabinet has no blind areas
technology:
High-frequency RFID technology is used to realize the identification, inventory and management of commodities.
Features:
Fast: Typical sales (3 items) non-inductive settlement (less than 1.5 seconds);
Anti-lodging: The tag can be read in three directions of XYZ;
Filmless technology: The vending machine does not require metal shielding film and settles accurately;
Service: Combine with the back-end server to easily realize functions such as sales, inventory, and replenishment.

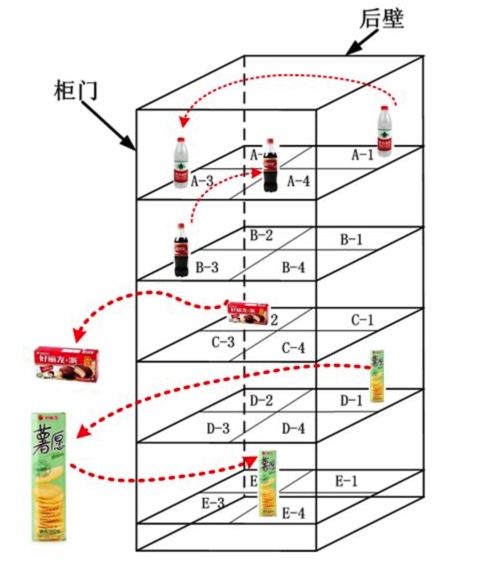

During the customer shopping process, the reader can obtain the following information in real time:
①Product information that has moved positions on the same floor ②Product information that has changed floors ③Product information that has been taken out of the cabinet ④Product information that has been taken out of the cabinet and put back into the cabinet
The reader can report the above information in real time.
The RFID smart wine cabinet is equipped with Bluetooth and wifi functions, responsible for opening and closing doors, inventory and settlement of the cabinet, and is compatible with the central control function. It can be applied to unmanned retail scenarios such as shopping malls, supermarkets, gyms, and hospitals.
Physical properties
Reader size 210 X140X50mm
Reader quality 2.5kg
IP protection IP40
Antenna size Can be customized according to the size of the cabinet
Reader electrical characteristics
Power supply 12VDC/2A
RF transmit power 1-2W adjustable
Label agreement Support ISO15693
working frequency 13.56MHz
Recognition distance 40cm (standard card)
Communication Interface RS232
System power consumption 1.8W/3.6W (standby/working)
Operating temperature -25℃~65℃
Working humidity Non-condensing relative humidity 25%~85%
Number of antennas 1~20
